Metrics

The agent reads host metrics from /proc, container metrics from docker stats, and forwards metrics your apps send over OTLP. They are stored in VictoriaMetrics (default) or Mimir and shown in Falak and Grafana.

Where to look

View	Shows
Server page → Metrics	CPU, memory, disk, load, network and disk I/O for one server
Service panel → Metrics	Requests, p95 latency, errors, CPU and memory per server (1h / 6h / 24h / 7d)
Servers list	Current load, memory and disk percentages
Grafana	Server, Laravel site, Node app, Containers, Queues and Deployments dashboards

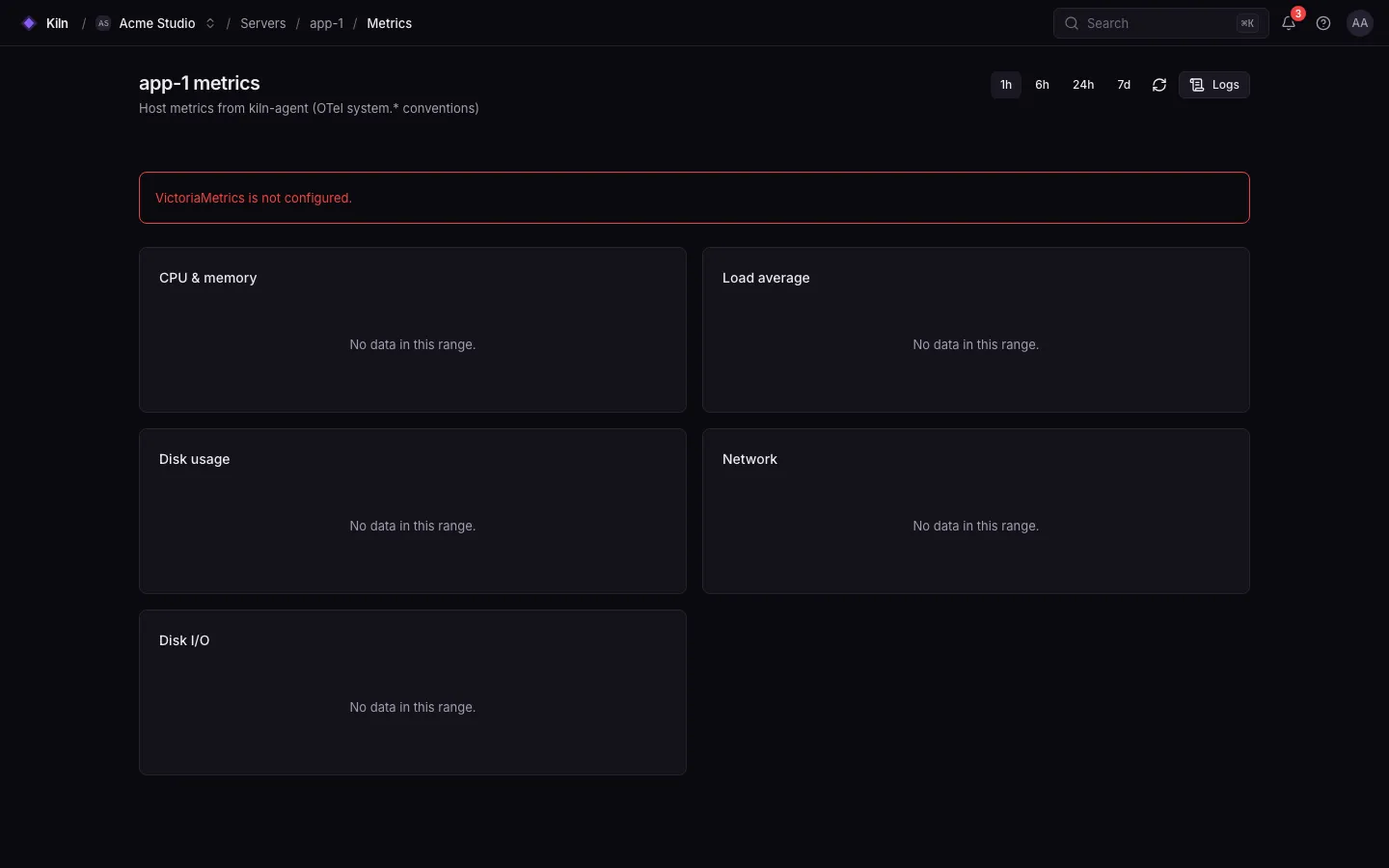

Server metrics: CPU, memory, load and network charts for one server.

Host metric names

Metrics follow OpenTelemetry semantic conventions, exported to Prometheus naming:

Metric	Meaning
`system_cpu_utilization_ratio`	CPU utilization (0–1)
`system_cpu_time_seconds_total`	CPU time by `cpu_mode`
`system_cpu_load_average_1m`, `_5m`, `_15m`	Load averages
`system_memory_usage_bytes`	Memory by `system_memory_state`
`system_memory_utilization_ratio`	Memory utilization
`system_filesystem_utilization_ratio`	Disk utilization by `system_filesystem_mountpoint`
`system_network_io_bytes_total`	Network bytes by `network_io_direction`
`system_disk_io_bytes_total`	Disk bytes by `disk_io_direction`

Filter by host_name.

avg by (host_name) (system_cpu_utilization_ratio)
max by (host_name, system_filesystem_mountpoint) (system_filesystem_utilization_ratio) > 0.85

Container metrics (Compose)

OTLP metric	Meaning
`falak.container.cpu.utilization`	CPU per container
`falak.container.memory.usage`, `falak.container.memory.limit`	Memory per container
`falak.container.network.io`	Network I/O per container

Intervals and backends

Setting	Default
Metrics interval	15 s (organization setting, 5–3600 s)
Backend	`victoriametrics` (`FALAK_METRICS_BACKEND`), or `mimir` with `FALAK_MIMIR_TENANT`
Query URL	`FALAK_METRICS_QUERY_URL` (the installer sets `http://gateway:9090/prometheus`)
Retention	30 days (`FALAK_METRICS_RETENTION`)

Deployments add a Grafana annotation and a deployment.id resource attribute, so you can see metric changes around each deploy.

Next steps

GrafanaProvisioned dashboards and datasources.

InsightsThresholds on routes, jobs and queries.
